Sub-Zero 501F sealed system rebuild in Blackhawk

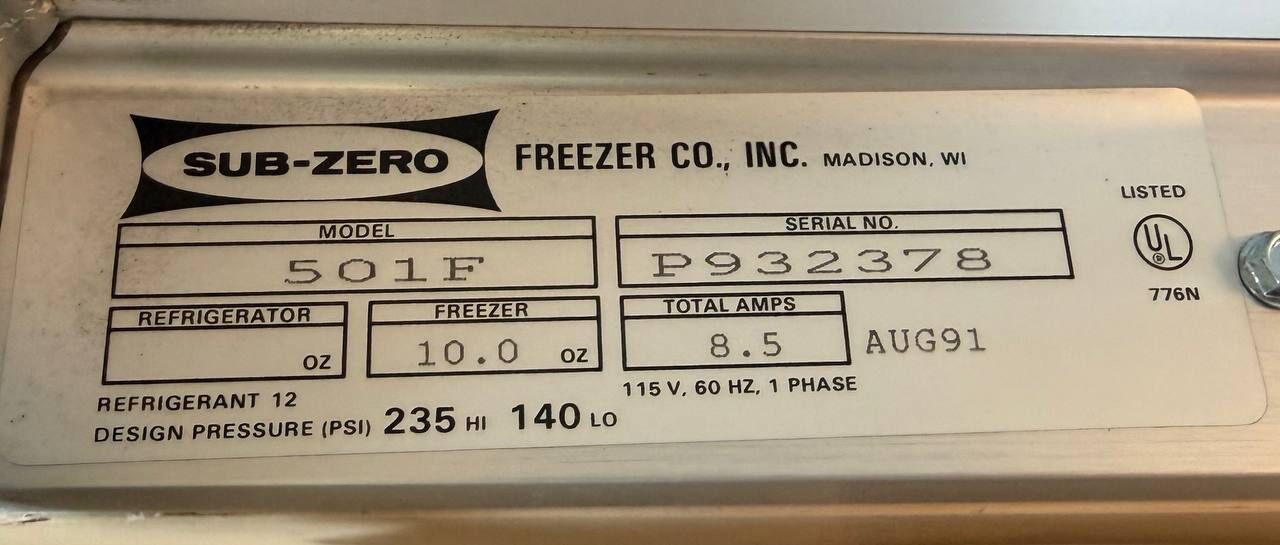

A Blackhawk homeowner had a Sub-Zero 501F built-in freezer, dated August 1991, that had stopped holding temperature. Thirty-five years is a long life for a sealed system, and this one had reached the end of it. The owner did not want to rip out a panel-ready built-in that fits the cabinetry perfectly, so we rebuilt it instead of replacing it.

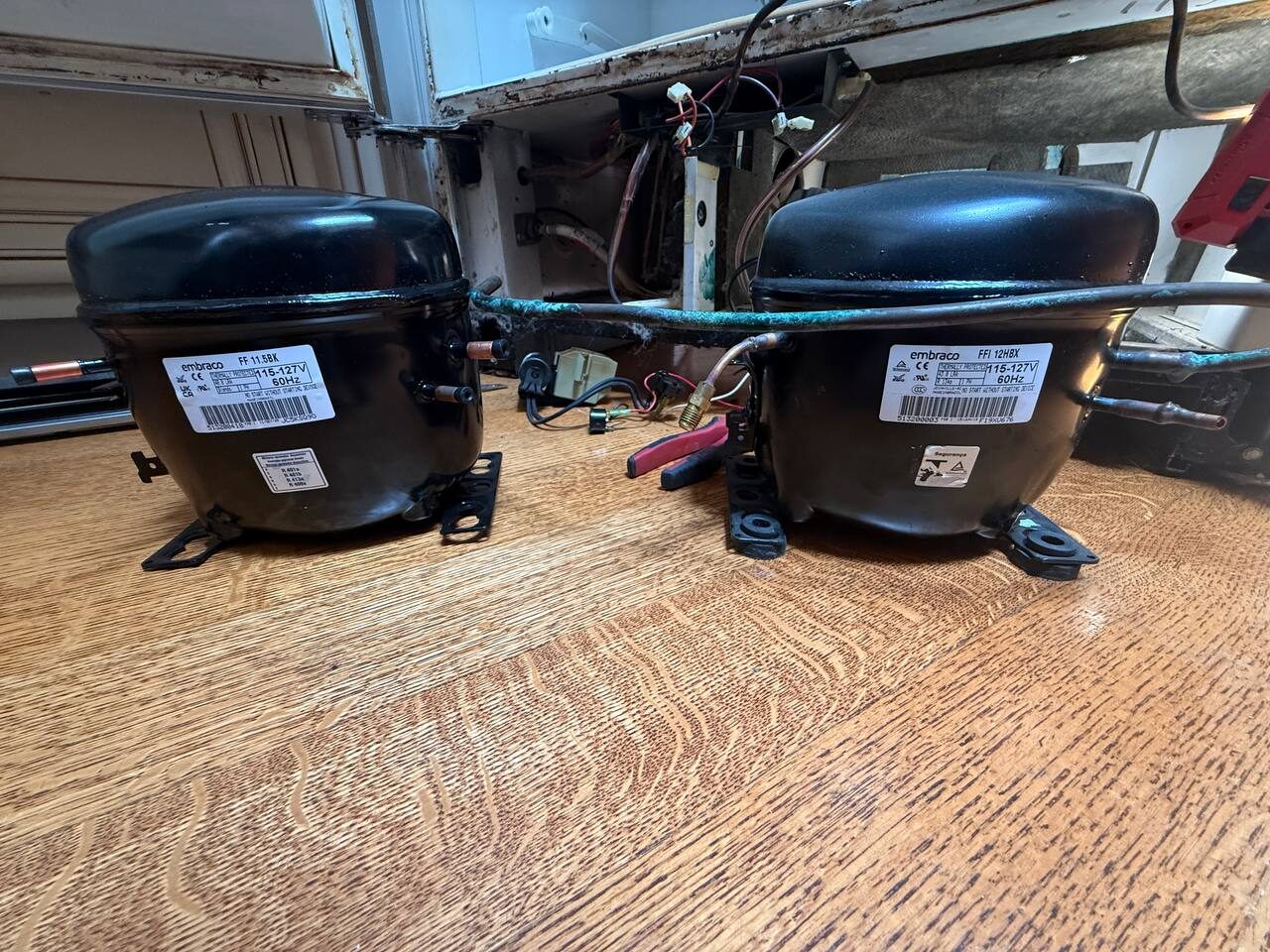

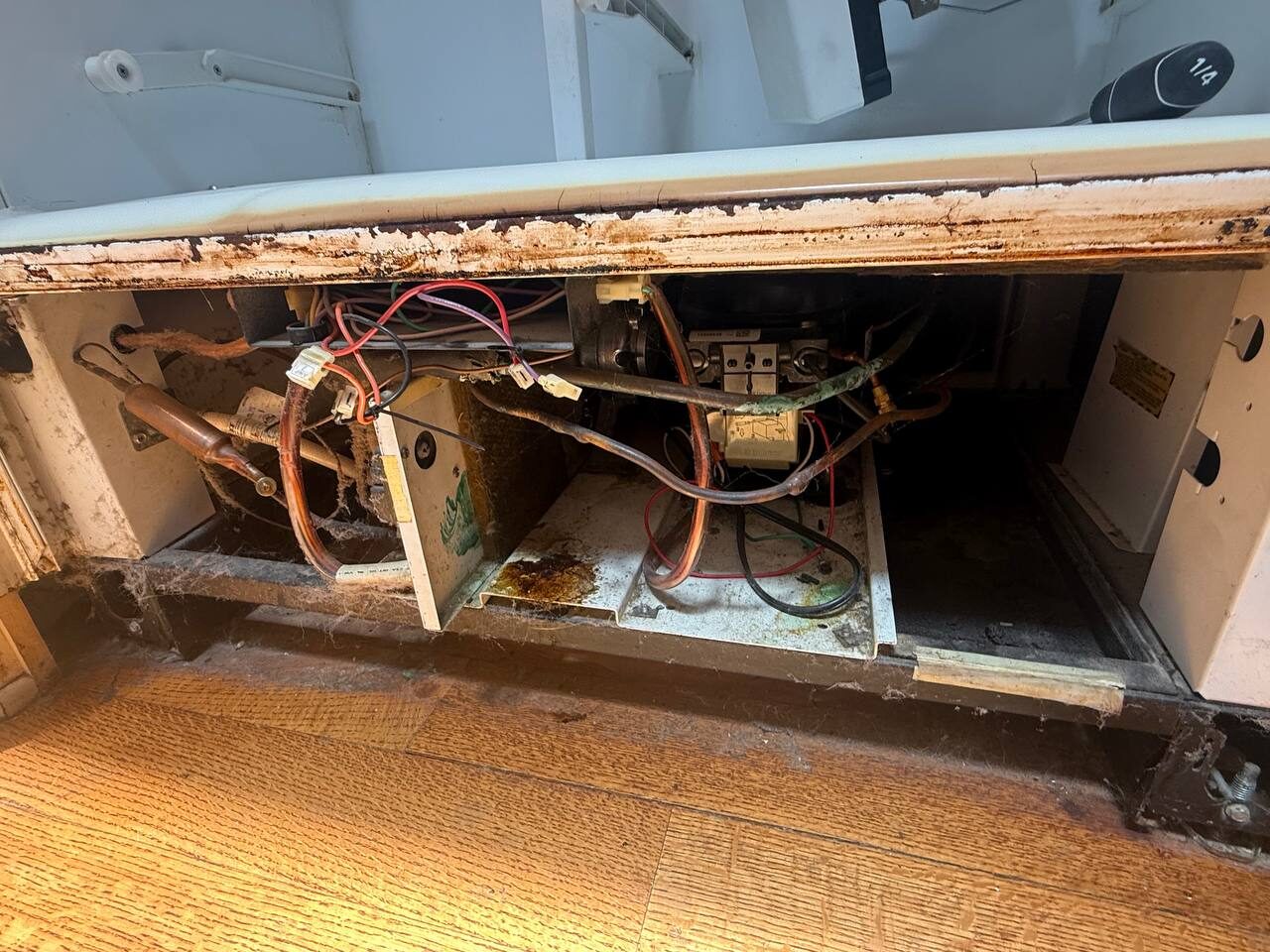

Problem: This 501F had a history. The sealed system had lost its charge to a refrigerant leak, so the freezer could not hold temperature. Opening it up told the rest of the story. The compressor had already been replaced once, around 2019, and there were burn marks on the old components from what looks like an electrical fire somewhere in the unit’s past. The ice maker was not the original Sub-Zero part either. The home had changed hands, so nobody can hand you the full record. What we could see was clear enough: a leaking sealed system, evidence of past damage, and decades of condensation that had rusted the cabinet metal through in a couple of spots.
Diagnostics: We found the refrigerant leak and confirmed the sealed system was the failure, not a control or a fan. With burn marks on the prior work and a system that had already been opened once before, a patch would not hold. This was a full rebuild call, and we said so up front rather than selling something that would fail again in a season.

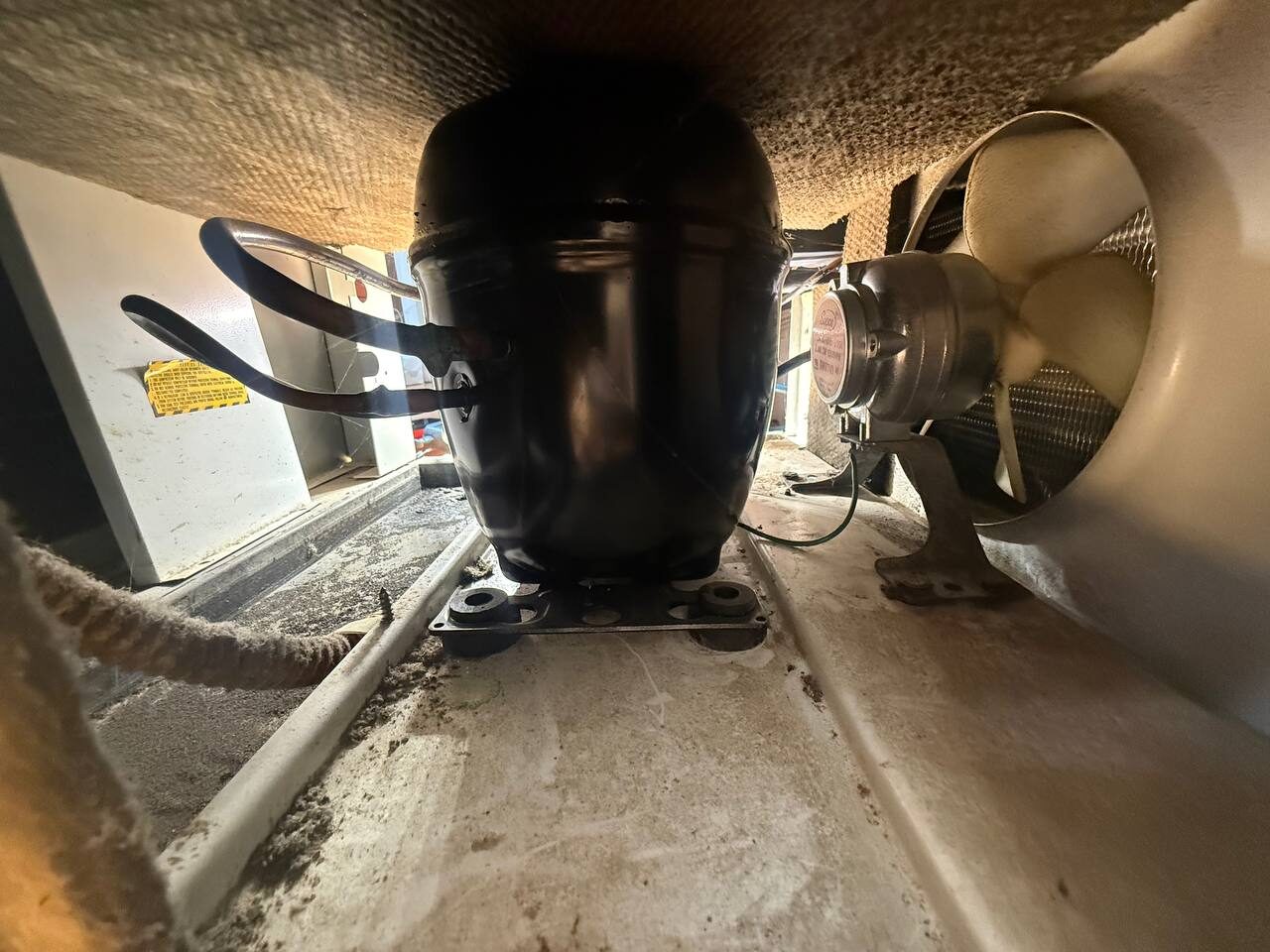

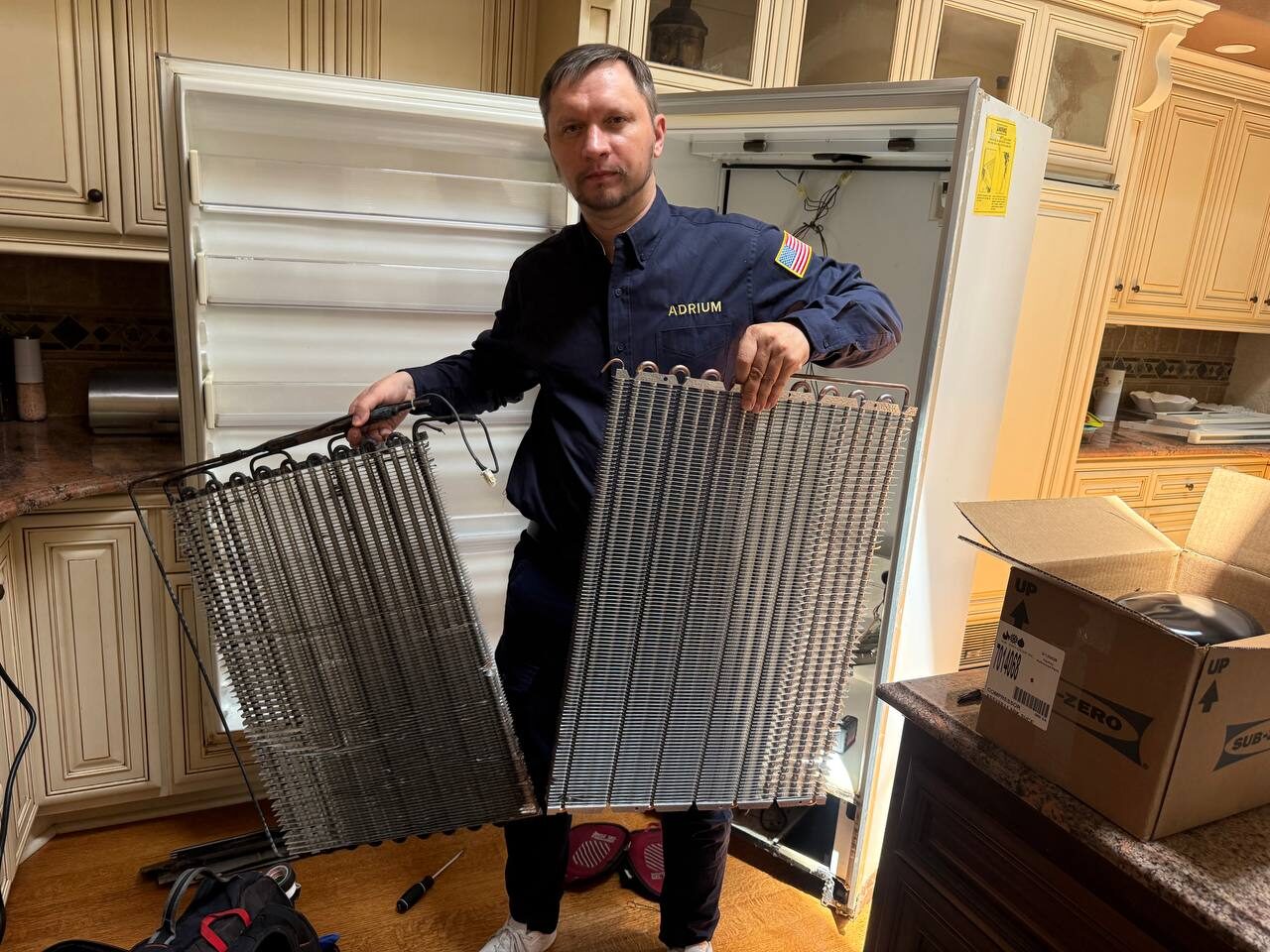

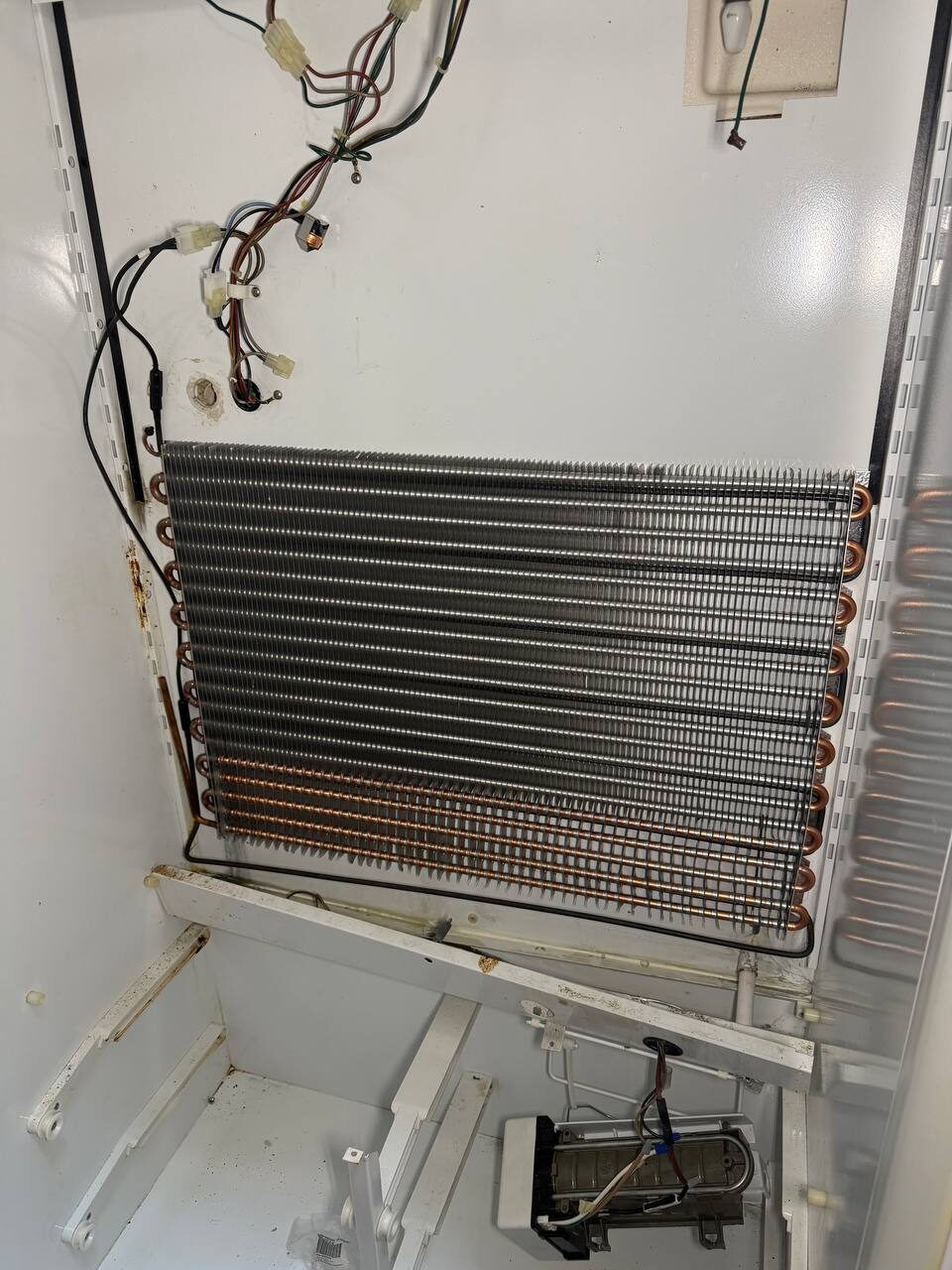

Solution: We rebuilt the sealed system end to end and eliminated the leak that killed it. A new compressor went in, along with a new evaporator, a new condenser fan, a fresh drier, and new line work brazed and leak-checked. We pulled a deep vacuum, verified it held, and charged it to spec. The rebuild carries a 2-year warranty on the sealed system, the same term we put on any sealed-system work.
Then we handled the parts most shops skip. We sanded the rusted body panels back to clean metal, treated them, and repainted, so the cabinet looks the part again instead of showing its age. A built-in Sub-Zero is furniture as much as an appliance, and in a Blackhawk kitchen it needs to look right.

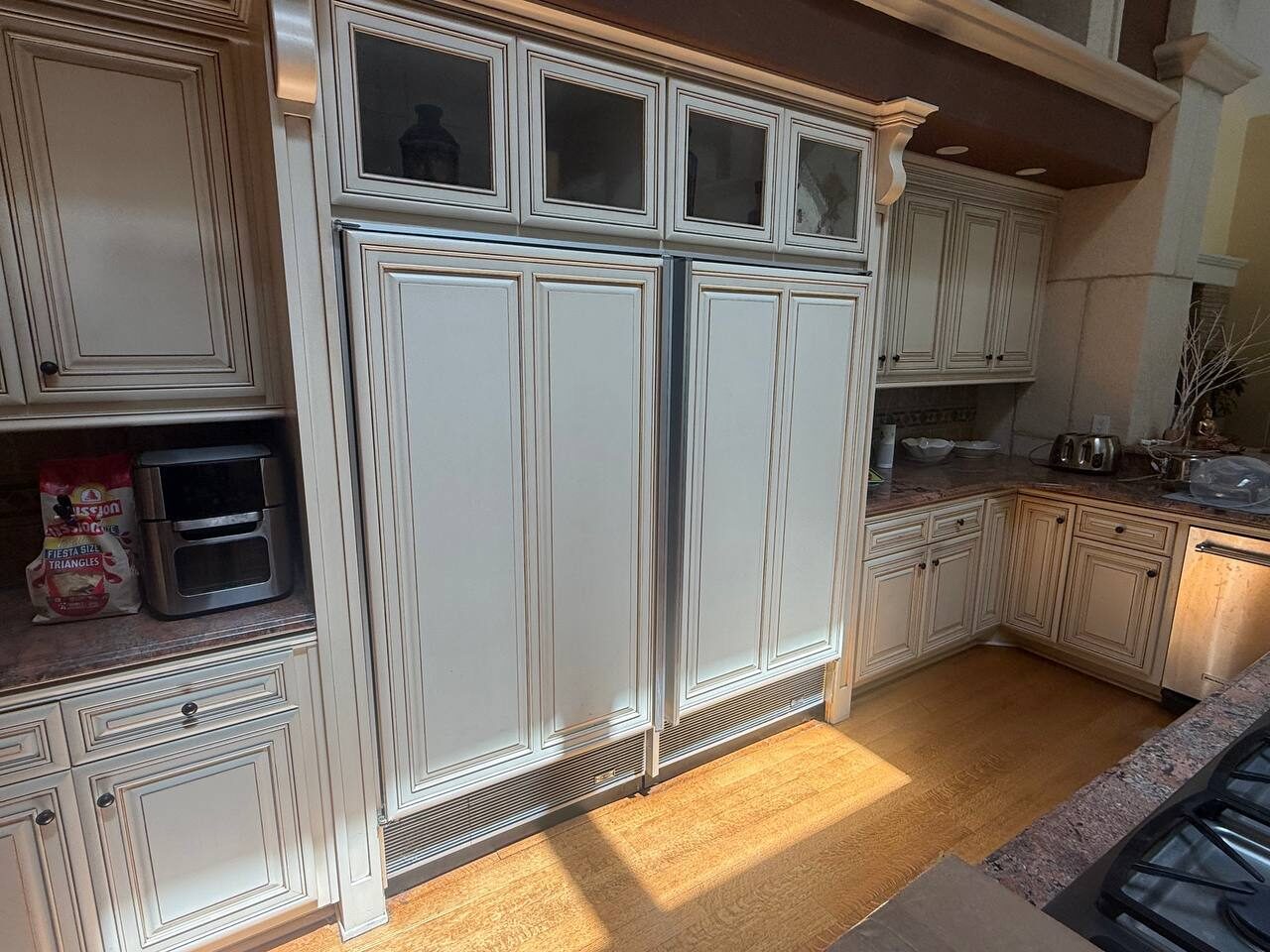

Why rebuild a 1991 unit: Because a built-in Sub-Zero is worth it. The cabinet, the fit, the panel-ready doors that match the kitchen are the expensive part, and those were fine. A rebuilt sealed system with a 2-year warranty gives this freezer another long run for a fraction of replacing the whole built-in. This is the kind of work we take on that most companies will not.
